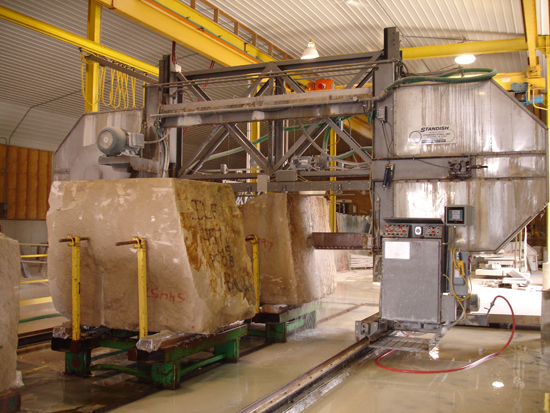

NARROW BELT BLOCK SAWS are full capacity production machines suitable
for any company small or large, with sizes to fit your individual
requirements. Most saws are traveling gantry machines which run on a
fabricated steel track. The saws are designed to be size efficient
requiring a minimum amount of building space while delivering the
maximum amount of cutting capacity. All sizes of saws can be furnished
as stationary units upon request by customer.
THE NARROW BELT SAWS ARE AVAILABLE IN THE FOLLOWING SIZES:
(Maximum Block Size) Wide x High
Overall Gantry Saw Dimensions
Width x Height x Depth
Center to Center of Tracks
13'-1 x 7'-5
27-6 x 17-0 x 7-5
25'-6 x 19'-6 x 9'-2
29'-1 x 19'-6 x 9'-2
saws are furnished with a cutting drive motor with the Y-delta reduced
voltage starter, cutting bar, belt, water booster pump, central
lubrication system, a PLC controller with operator interface touch
screen for repeat cutting cycle, and one set of 20 ft. track.
For information on diamond belts contact these companies:
W.F. Meyers Company, Inc.
Diamond Stone Technologies

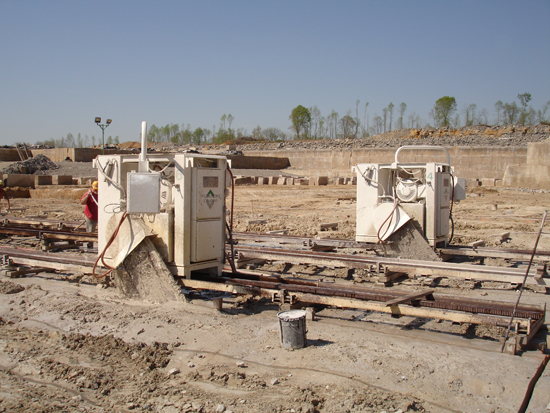

Revolutionary DIAMOND BELT QUARRY SAW is the most efficient way of
quarrying blocks of limestone, sandstone, or marble. You can easily turn
ledges over and break blocks loose using airbags after the cuts have
been completed. The Diamond Belt Quarry Saw travels on track sections
that can be purchased in 5 or 10 foot lengths. Leveling jacks are
installed on the track to level the uneven quarry floor and to keep the
saw level while cutting. The rotating saw housing allows the owner to
make cuts on either side of the track to reduce set-up time.
ALL MACHINES HAVE A REQUIRED 3-PHASE VOLTAGE OF 240 VOLTS OR 480 VOLTS.
MACHINES REQUIRING 550 VOLTAGE ARE AVAILABLE UPON REQUEST.

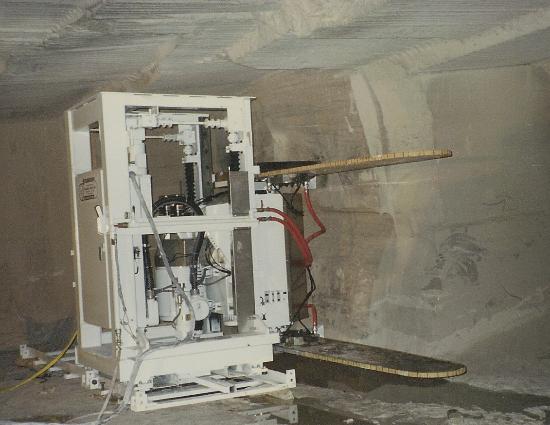

STANDISH DOUBLE BAR HORIZONTAL SAW allows the owner to make multiple
cuts quickly and easily in one set-up. This unique saw utilizes 1 1/2
wide diamond belts (2) and 6-3 cutting bars (2) to make horizontal
cuts in the face of a vertical wall. The machine will make a bottom cut
and a mid-wall cut at the same time with a top cut being made during a
reverse pass along the wall.
Double Bar with diamond cutting belt
Cutting belt drive75 H.P.
Center to Center distance of cutting bars 6 ft.
Cutting bars rotate horizontally 180+ degrees
Cutting Head raises and lowers for multiple cuts
Operates on 5 ft. wide track sections
A standard flush cut quarry saw is used to make vertical plunge cuts
to cut blocks to length.

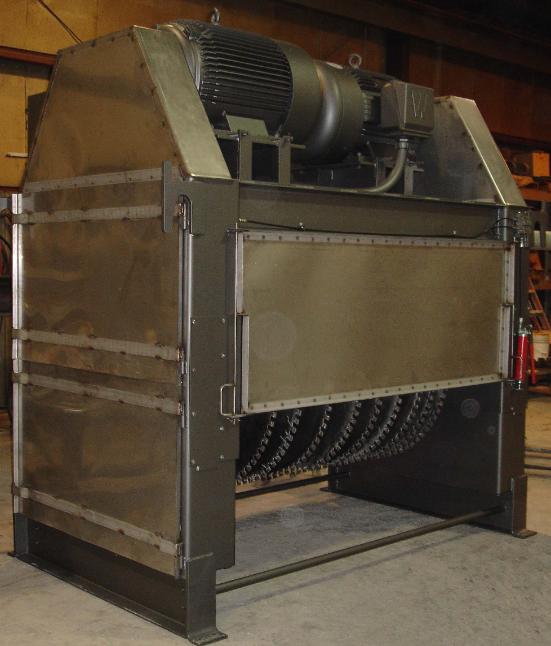

STANDISH MULTI-BLADE SAW is designed for cutting slabs of stone to
various widths to use for veneer, lintels, treads, sills, etc. This
machine greatly increases production because of its ability to make
multiple cuts at one time as opposed to using a single-blade circular
saw. One of our multi-blade saws currently in use has 25 blades making
cuts 2 apart in one pass.
The STANDISH MULTI-BLADE SAW features:
40 or 48 Diameter Diamond Blades
Normal Blade Tip Speed10,000 Ft. per minute
Furnished with blade spacer kit according to customers job needs
Throat Capacity of 66 Wide x 18 High (48 Blades), 14 high (40
Furnished with equipment required to install and remove blades
Blade arbor is quickly interchangeable for changing different blade
Normally mounted over a wood slat conveyor.
Requires power supply for 400 H.P.

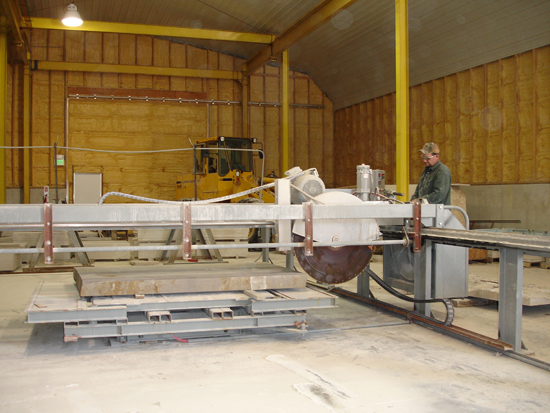

A SINGLE BLADE SAW that allows cuts in stone slabs up to 14.5" thick.
40 Circular saw with diamond blade
90 Degree of vertical rotation side to side for bevel cutting
3 Vertical travel
Works great over a Standish turntable
A PRODUCTION PIECE WITH NO FRILLS AT A REASONABLE PRICE!

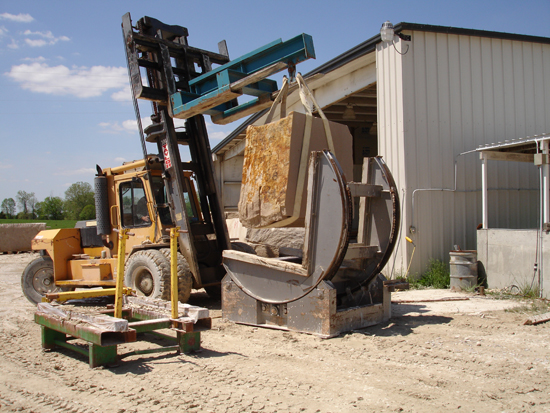

STANDISH BLOCK TURNER can rotate stone blocks 90 degrees on the
horizontal axis. This allows a block to be positioned for cutting with
the grain of the stone, or for laying stone slabs in a horizontal
position, and allows the user to take slabs from the saw and lay them
over so they can be loaded onto a truck.
STANDISH TUMBLER has a 6' diameter, 8' long, and 3/8" steel drum
with a capacity of 3 1/2 tons. The drum is powered by a 15 hp motor. It
has a hydraulic tilt back and is easily loaded and unloaded. The
Standish tumbler has a timed tumble of up to 10 minutes. The Standish
tumbler can produce tons of tumbled product per hour from saved or
broken material or use it to clean up your yard and turn your scrap into
profit. Built with the same strength and dependability as all Standish
machines. A working trailer available - contact for details.
design of our tumbler allows user to set a pallet of stone into
cylinder, rotate one turn, remove pallet, tumble stone as desired, and
then dump tumbled stone into box for sorting.

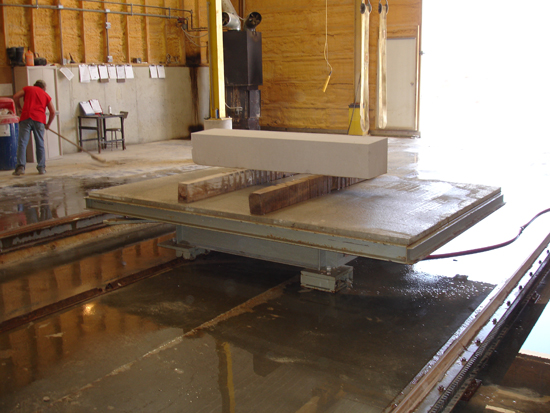

STANDISH TURN TABLE
10 ton capacity
Rotation stops @ 90°
Air powered lift
Rotates on ball bearings
Customized sizes (Standard size 10' X 7')
Poured concrete top furnished by customer

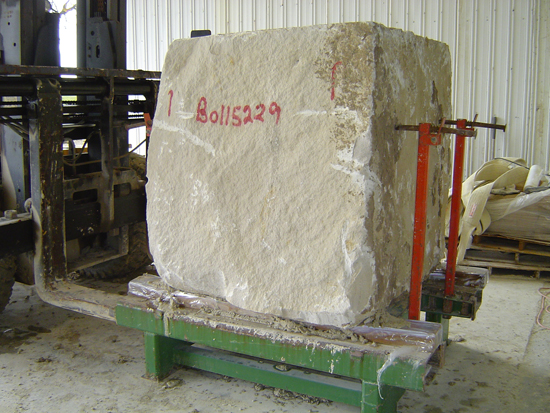

BLOCK STANDS is a safe and economical system for transporting the
blocks to a narrow belt saw while using a front loader or fork lift, and
removing the slabs after cutting without use of an overhead handling

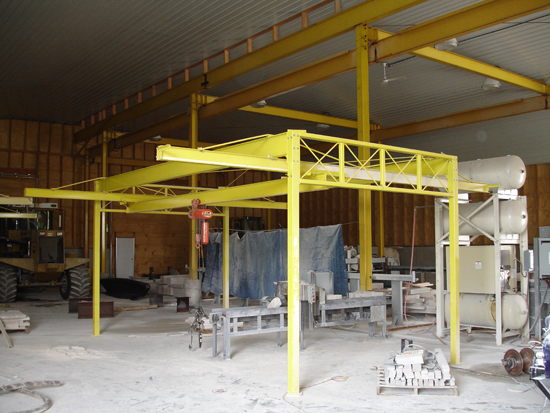

WORK CELL STATION
allows employees to work in a small area with their own handling device.

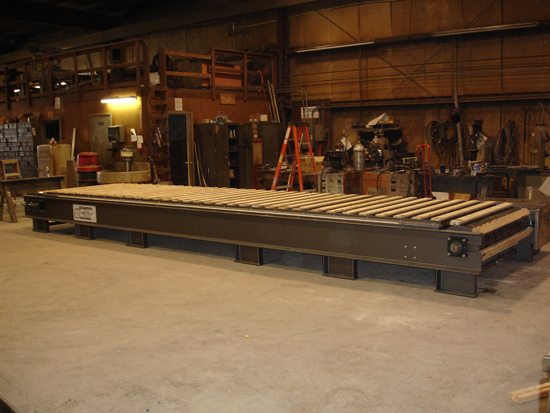

The WOOD SLAT CONVEYOR
24 Ft. Long X 5'-5" Wide Conveyor Slider Bed
Variable Speed (30 in./min. Max.)
Ask about our different conveyor sizes and options
We manufacture and supply any repair parts if ever required
for all machines built by Standish Steel, Inc.
Contact us for more information and pricing of our machines and
equipment. We can custom design and manufacture any machine or piece of
equipment to meet your needs and specifications. Contact us at: firstname.lastname@example.org
